Automatic PET Plastic Drinking Mineral Bottle Water Production Line/ Filling Machine / Equipment Water Pure Machine
- PRODUCT DETAIL

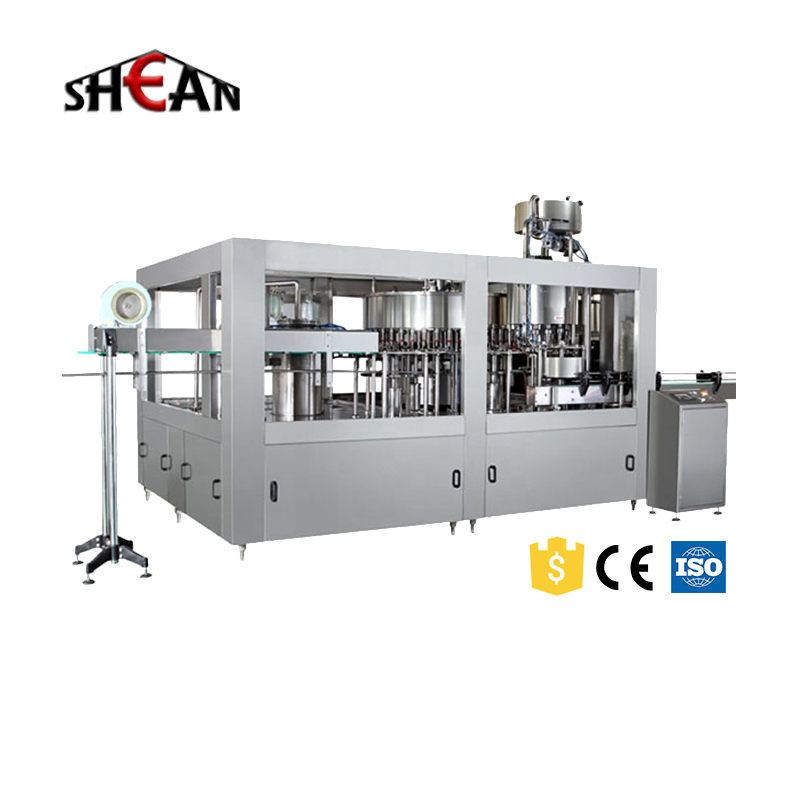

Mineral Water Bottle Filling Machine
Product Overview
The Mineral Water Bottle Filling Machine is an advanced, fully automatic solution designed for efficient and hygienic bottling of purified and mineral water. Built with precision technology and high-grade stainless steel, this machine ensures consistent performance, accurate filling, and superior product quality — making it ideal for water production lines of all sizes.
Main Features
- High Filling Accuracy: Equipped with a precise flow meter or volumetric filling system to ensure accurate and consistent filling volumes for every bottle.
- Hygienic Design: All parts in contact with liquid are made of food-grade stainless steel (SUS304/316), ensuring safety and compliance with sanitation standards.
- Automatic Operation: Integrates bottle rinsing, filling, and capping in one machine for seamless operation and labor savings.
- Versatile Compatibility: Suitable for PET, glass, and plastic bottles of various shapes and sizes, ranging from 200ml to 2L.
- Smart Control System: Operated through a user-friendly PLC and touch screen interface for easy parameter adjustment and real-time monitoring.
- Efficient Production: High-speed filling heads and advanced conveyor systems allow for continuous and stable performance with minimal downtime.
- Energy Saving & Low Maintenance: Optimized design reduces power consumption and simplifies cleaning and maintenance processes.
Working Process
- Bottle Rinsing: Empty bottles are automatically fed into the rinsing section where they are cleaned thoroughly with purified water.
- Filling: The clean bottles move to the filling station, where mineral water is precisely filled using gravity or pressure filling methods.
- Capping: Bottles are sealed with caps automatically, ensuring a leak-proof and hygienic closure.
- Labeling & Packaging (Optional): The filled bottles can be connected to a labeling machine, date coder, and packaging system for a complete production line.
Applications
This machine is widely used in:
- Mineral Water Plants
- Pure Water Bottling Lines
- Beverage Production Factories
- Bottled Water Brands
Technical Parameters
| Model | Filling Heads | Capacity (BPH 500ml) | Power (kW) | Bottle Size Range | Machine Dimension (mm) |
|---|---|---|---|---|---|
| CGF14-12-5 | 14 | 3000–4000 | 3.5 | 200–2000ml | 2500×1800×2200 |
| CGF18-18-6 | 18 | 5000–7000 | 4.2 | 200–2000ml | 2800×2000×2300 |
| CGF24-24-8 | 24 | 8000–10000 | 5.5 | 200–2000ml | 3100×2200×2400 |
| CGF32-32-10 | 32 | 12000–15000 | 7.5 | 200–2000ml | 3800×2500×2500 |
Why Choose Our Machine
- 20+ years of experience in liquid filling technology
- International certifications (CE, ISO9001)
- Customizable design for different production requirements
- Comprehensive after-sales service and technical support
Conclusion
The Mineral Water Bottle Filling Machine offers an efficient, hygienic, and reliable solution for modern water bottling operations. Its automated system, high precision, and durable construction make it the perfect choice for enterprises aiming to enhance production efficiency and product quality.
📞 Contact us today to learn more about our water filling solutions and get a customized quotation for your production needs.
